Henan Hongke Heavy Machinery Co., Ltd. is pleased to present a detailed case study of a successfully deployed chemical sludge drying production line in Hubei Province, China. This project exemplifies our commitment to delivering high-performance, reliable industrial drying solutions for challenging materials.
Project Overview
A chemical manufacturing facility in Hubei faced mounting challenges with the disposal of high-moisture industrial sludge generated from its production processes. The client required a robust, energy-efficient drying system capable of significantly reducing sludge volume to lower disposal costs and meet stringent environmental regulations.

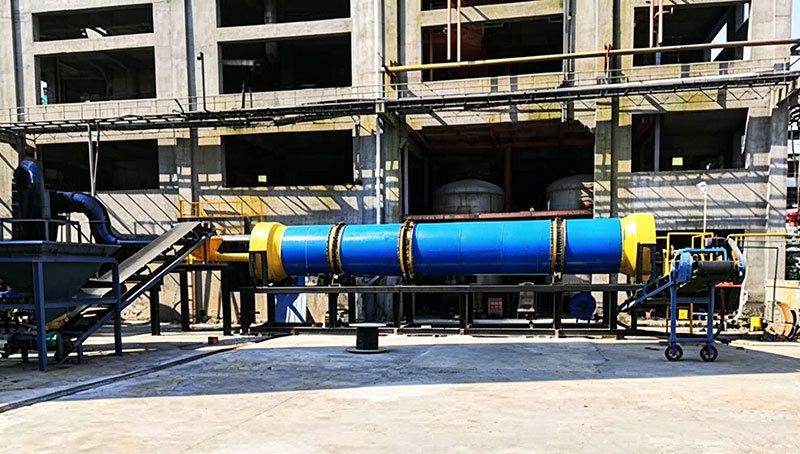

After a thorough evaluation of their operational requirements and material characteristics, the client selected Henan Hongke Heavy Machinery to supply a complete drying solution. The system is anchored by a Φ1.2×10m rotary dryer, a model well-suited for handling the high viscosity and moisture content typical of chemical sludge.
The Challenge
The project addressed several critical issues:
High Moisture Content: The raw chemical sludge had a moisture content of approximately 70%, making it costly to transport and dispose of.
High Viscosity: The sticky nature of the sludge posed a significant risk of material build-up and "ring formation" inside the dryer, which can reduce efficiency and increase maintenance.
Environmental Compliance: The client needed a solution that would reduce the sludge volume for safer, more economical landfill disposal or potential use as an alternative fuel source.
The Hongke Solution
Henan Hongke Machinery provided a complete, engineered production line centered around our advanced rotary drying technology. The core components of the system include:
Main Equipment: A Φ1.2×10m rotary dryer, designed to handle a capacity of 1.2-3.5 tons per hour, with a feed moisture of 70±5% and capable of reducing output moisture to 15±5%.
Customized Internal Structure: The dryer features a specially designed internal structure with a unique lifting and breaking device. This design continuously breaks up and disperses the viscous sludge as it moves through the cylinder, preventing material from sticking to the walls and maximizing contact with the hot air stream for superior heat exchange.
Complete System Integration: The production line includes an efficient heat source (utilizing natural gas or biomass), conveying equipment, and a dust removal system to ensure the entire process is clean and efficient.
Results and Client Benefits
The Hubei sludge drying project has delivered outstanding operational results for the client:
Significant Volume Reduction: The system successfully reduces the sludge moisture content from approximately 70% to below 20%. This translates to a drastic reduction in the sludge's weight and volume, cutting transportation and landfill costs by over 60%.
Enhanced Operational Stability: The advanced anti-sticking design ensures that the dryer operates continuously without the need for frequent manual cleaning, reducing downtime and maintenance costs.
Improved Environmental Performance: The dried sludge is now a stable material with a higher calorific value, opening up possibilities for use as refuse-derived fuel (RDF) in cement plants or other industrial processes, aligning with circular economy principles.
Reliable Equipment Performance: As a trusted manufacturer with over 12 years of industry experience, Henan Hongke Heavy Machinery Co., Ltd. ensured the equipment operated smoothly from the initial commissioning phase, with minimal operator intervention required.
Conclusion
The successful implementation of the 1.2×10m chemical sludge drying line in Hubei demonstrates Henan Hongke Heavy Machinery Co., Ltd.'s expertise in providing tailored, high-efficiency solutions for complex industrial drying challenges. By effectively tackling the issues of high moisture and viscosity, we have helped our client turn a costly waste management problem into an opportunity for cost savings and sustainable operation.
For more information about our sludge drying solutions, please contact us at Henan Hongke Heavy Machinery Co., Ltd.
