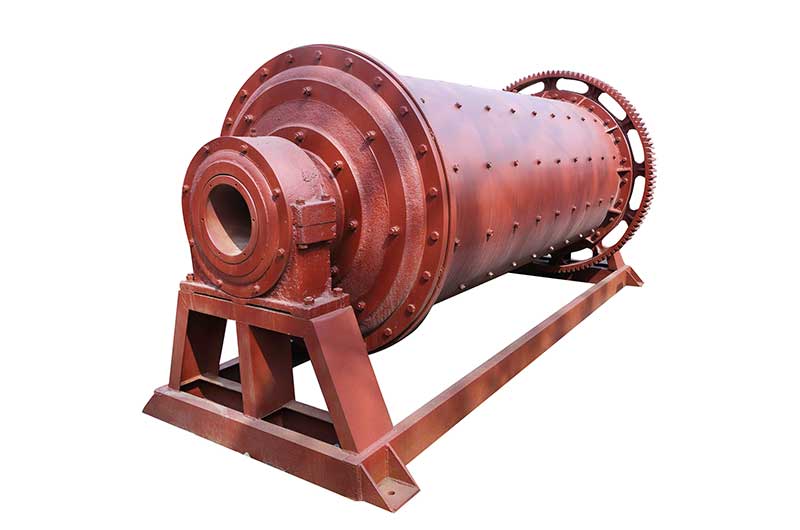

Our horizontal ball mill is a high-efficiency grinding equipment widely applied in mining, chemical, building materials, metallurgy and refractory industries. Designed with a horizontal rotating cylinder and high-grade grinding media, it delivers uniform particle size, stable operation and outstanding grinding performance for both dry and wet grinding processes.
Key Features & Advantages
✅Excellent Grinding PerformanceThe specially designed cylinder and high-quality grinding media ensure thorough grinding. Finished materials feature uniform particle size and high fineness, fully meeting diverse production standards.
✅Energy-saving & High ProductivityOptimized transmission structure greatly reduces power consumption while boosting hourly output. It delivers higher production efficiency and helps you cut long-term operating costs.
✅Ultra Durable & Wear-resistantFitted with thickened steel shell and high-strength wear-proof liners. Core components adopt premium raw materials, extending service life and lowering replacement frequency.
✅Stable Operation & Low NoisePrecision assembly ensures smooth rotation with slight vibration and low noise. It supports 24-hour continuous running for uninterrupted production.
✅Easy Operation & Simple MaintenanceHumanized control design makes operation intuitive. The structural layout facilitates daily inspection, lubrication and part replacement, saving labor and maintenance time.
✅Wide Compatibility & CustomizationMultiple standard models are available for different processing capacities. We also support customized specifications, liner types and auxiliary configurations based on your raw materials and production demands.
Core Advantages
✅ Superior Grinding EfficiencyOptimized cylinder structure and internal lining maximize grinding effect, greatly boost production capacity while cutting energy consumption.
✅ Durable & Low MaintenanceAdopts wear-resistant liners, thickened shell and high-quality transmission parts. Long service life, fewer breakdowns and easy daily maintenance, effectively reducing your operational costs.
✅ Stable & Safe RunningSmooth rotation, low vibration and low noise. Equipped with reliable protective devices to ensure long-term continuous production.
✅ Wide Application & CustomizationAvailable in multiple models and specifications. We support custom design on capacity, material inlet/outlet and configuration to match your unique production requirements.
Model
(Specification) | Rotary Speed（r/min） | Ball Load（t） | Feed Size（mm） | Discharge Size（mm） | Production Capacity（t/h） | Motor Power(kw) | Total Weight(t) |
| Ф900×1800 | 36-38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.5 |
| Ф900×3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.7 |
| Ф1200×2400 | 36 | 3 | ≤25 | 0.075-0.4 | 1.5-4.8 | 30 | 12 |
| Ф1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
| Ф1200×4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Ф1500×3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 16.8 |
| Ф1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| Ф1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
| Ф1800×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 29 |
| Ф1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 35.5 |
| Ф1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
| Ф1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
| Ф2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 34.8 |
| Ф2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 38 |
| Ф2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 56.6 |
| Ф2200×4500 | 21.5 | 35 | ≤25 | 0.074-0.4 | 9-45 | 280 | 51.8 |
| Ф2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 280 | 60 |
| Ф2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 62 |
| Ф2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 64.8 |
| Ф2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 | 54 |
| Ф2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| Ф2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 380 | 94 |
| Ф2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 480 | 102 |
| Ф3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | Subject to process conditions | 800 | 137 |
| Ф3600×4500 | 17 | 90 | ≤25 | 0.074-0.4 | Subject to process conditions | 850 | 158 |
| Ф3600×6000 | 17 | 110 | ≤25 | 0.074-0.4 | Subject to process conditions | 1250 | 175 |
| Ф3600×8500 | 18 | 131 | ≤25 | 0.074-0.4 | 45.8-256 | 1800 | 252 |
| Ф4000×5000 | 16.9 | 121 | ≤25 | 0.074-0.4 | 45-208 | 1500 | 203 |
| Ф4000×6000 | 16.9 | 146 | ≤25 | 0.074-0.4 | 65-248 | 1600 | 218 |
| Ф4000×6700 | 16.9 | 149 | ≤25 | 0.074-0.4 | 45-252 | 1800 | 238 |
| Ф4500×6400 | 15.6 | 172 | ≤25 | 0.074-0.4 | 54-306 | 2000 | 280 |
| Ф5030×6400 | 14.4 | 216 | ≤25 | 0.074-0.4 | 68-386 | 2500 | 320 |
| Ф5030×8300 | 14.4 | 226 | ≤25 | 0.074-0.4 | 88-500 | 3300 | 403 |
| Ф5500×8500 | 13.8 | 338 | ≤25 | 0.074-0.4 | 108-615 | 4500 | 525 |
