Henan Hongke Heavy Machinery Co., Ltd. has delivered a Φ 2.5×45m zinc oxide (ZnO) rotary kiln production line to a customer in Kaifeng, Henan Province, China. The line processes zinc-bearing residues through carbothermic reduction and re-oxidation to recover zinc oxide.
Below is the full project breakdown: customer background, the original problem, equipment configuration, delivery timeline, commissioning results, and customer feedback.
1. Customer Background
Location: Kaifeng, Henan Province, China
Industry: Non-ferrous metals / secondary zinc recovery
Kaifeng is an industrial city in eastern Henan with a developing non-ferrous metals sector. Local processors handle zinc-bearing industrial residues—including steel mill dust, galvanizing waste, and similar byproducts—and recover zinc as zinc oxide for sale to the rubber, ceramics, paint, and chemical industries.
Our customer operates a zinc recovery facility in Kaifeng. Their feed material is a mix of zinc-bearing residues with variable zinc content, moisture, and particle size.
2. The Original Problem
Before approaching Henan Hongke Machinery, the customer faced several operational constraints:
| Problem | Impact |
|---|---|
| Variable zinc recovery rate | Zinc lost in slag; lower revenue per ton of feed |
| Unstable reduction temperature | Incomplete reduction; inconsistent ZnO grade |
| Ring formation in the kiln | Material sticking to walls; unplanned stoppages |
| High fuel consumption | Rising cost per ton of ZnO produced |
| Off-gas treatment limitations | Difficulty capturing ZnO fume and meeting emission limits |
| Throughput ceiling | Unable to accept larger volumes of feedstock |
The customer needed a purpose-built line that could handle variable feed, hold stable reduction conditions, and deliver consistent ZnO product.
3. Why the Customer Chose Henan Hongke Machinery
After evaluating several suppliers, the customer selected us for specific, practical reasons:
a) Process discussion, not just equipment quotation
ZnO recovery via carbothermic reduction depends on the interaction of feed preparation, reduction temperature, kiln atmosphere, gas velocity, and fume collection. We discussed these parameters in detail during technical exchange—not just dimensions and price.
b) Design for variable feed material
The customer's feedstock was not a uniform ore. It was a mix of industrial residues with variable zinc content and particle size. Our engineering team designed the kiln and control system around this variability.
c) Complete line responsibility
We supplied the full scope: feed preparation, the Φ 2.5×45m rotary kiln, burner system, oxidation settling chamber, cooling system, bag filter, slag quench system, and PLC controls. The customer did not have to coordinate multiple suppliers.
d) Factory inspection and reference review
The customer reviewed our manufacturing facility and similar kiln projects before signing.
e) Post-delivery support commitment
The customer wanted a supplier who would remain available for process optimization and spare parts after handover.
4. Equipment Configuration

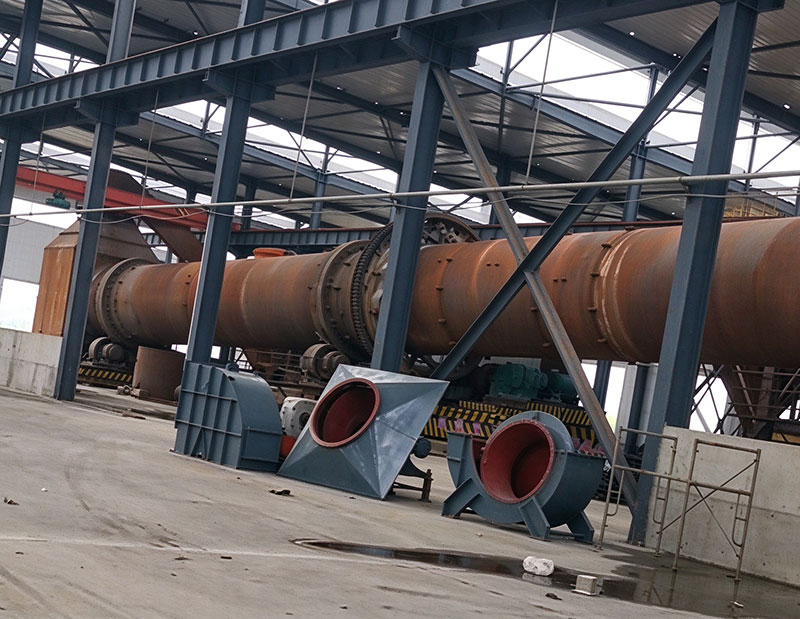

The delivered line is built around a Φ 2.5×45m rotary kiln.
| Parameter | Specification |
|---|---|
| Kiln diameter | 2.5 m |
| Kiln length | 45 m |
| Application | Zinc oxide recovery from zinc-bearing residues |
| Kiln slope | 3–4% |
| Rotation speed | Variable frequency drive |
| Operating temperature | Up to 1,100–1,200°C (reduction zone) |
| Drive system | Heavy-duty gear drive with main and auxiliary motors |
| Sealing | Labyrinth seals with air purge at head and tail |
Scope of supply:
| System | Function |
|---|---|
| Feed preparation | Crushing, mixing with carbon reductant, pelletizing |
| Φ 2.5×45m rotary kiln | Reduction and volatilization of zinc |
| Multi-channel burner | Heat input, flame control |
| Oxidation settling chamber | Controlled re-oxidation of zinc vapor to ZnO |
| Surface cooling system | Gas cooling ahead of filtration |
| Pulse-jet bag filter | ZnO fume collection |
| Slag quench system | Slag cooling and discharge |
| PLC control system | Temperature, feed rate, speed, and emission monitoring |
5. Delivery Timeline
| Stage | Status |
|---|---|
| Technical exchange and process design | Completed |
| Manufacturing at Henan Hongke facility | Completed |
| Factory assembly and no-load testing | Completed |
| Shipment to Kaifeng, Henan | Completed |
| On-site installation | Completed |
| Commissioning and hot testing | Completed |
| Handover to customer | Completed |
6. Commissioning Results
| Performance Metric | Result |
|---|---|
| Zinc recovery rate | Improved compared to previous operation |
| ZnO product grade | Consistent, meeting customer specifications |
| Reduction zone temperature | Stable across operating shifts |
| Ring formation | Reduced; fewer unplanned stoppages |
| Throughput | Meets agreed design capacity |
| Emission control | Dust emissions within regulatory limits |
| Operating stability | Continuous operation achieved |
7. Customer Feedback
"The kiln runs steadily. Recovery is better than before, and the ZnO grade is consistent. The engineering team was responsive during installation and commissioning. We're satisfied with the equipment and the support." — Production Manager, Kaifeng zinc recovery facility
8. What This Means for the Customer
| Benefit | Practical Value |
|---|---|
| Higher zinc recovery | More saleable ZnO per ton of feed |
| Consistent product grade | Stable offtake agreements |
| Lower fuel consumption | Reduced cost per ton |
| Less ring formation | Fewer unplanned stoppages |
| Environmental compliance | Meets local emission requirements |
| Full-scope supplier | Single point of responsibility |
9. Building Long-Term Partnerships
Our commitment to the Kaifeng customer does not end at handover. We continue to provide:
Technical support on process optimization
Spare parts availability for critical components
Maintenance guidance and preventive maintenance planning
Support for future capacity expansion or process adjustment
