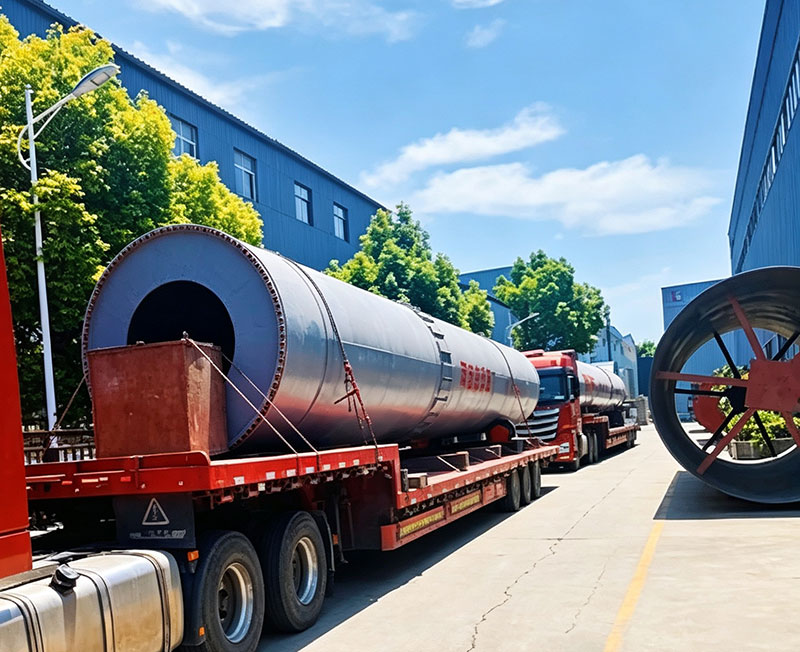

Henan Hongke Heavy Machinery Co., Ltd. is pleased to announce the successful shipment of a Φ2.2×45m rotary kiln for water-based drilling cuttings processing to a customer in Sichuan Province, China. This project demonstrates our capability to deliver specialized thermal treatment equipment for the oil and gas drilling waste management industry.
Project Background: Turning Drilling Waste into Resources
Our customer in Sichuan operates in the oil and gas exploration sector, where water-based drilling fluids and associated drill cuttings are among the largest waste streams generated from drilling operations . With the growth of shale gas exploration in the Sichuan Basin, the volume of drilling waste has increased significantly, creating an urgent need for effective waste management solutions.
Water-based drilling cuttings typically contain rock fragments, barite (barium sulfate), clays, and various chemical additives used in drilling fluids . These materials must be properly treated before disposal or reuse to meet environmental standards. However, traditional disposal methods such as landfilling are becoming increasingly costly and environmentally unsustainable.
Our customer identified an opportunity to not only dispose of drilling waste safely but to transform it into valuable resources—including construction materials and cement production feedstocks. Research has shown that water-based drilling cuttings can partially replace limestone in cement raw material feed, with the rotary kiln's high-temperature environment (approximately 1,450°C) rendering harmful components harmless while utilizing the inorganic components as materials .
The Challenge: Processing Wet, Complex Waste
Before approaching Henan Hongke Machinery, the customer faced several operational challenges:
| Challenge | Impact |
|---|---|
| High moisture content | Raw cuttings typically contain about 60% moisture, requiring significant thermal energy for drying |
| Variable composition | Cuttings composition varies with drilling depth and formation geology |
| Space constraints | Limited site footprint required compact equipment design |
| Emission control | Stringent environmental standards for flue gas treatment |
| Resource recovery goals | Customer wanted to produce usable products from the waste |
They needed a reliable, high-temperature rotary kiln system capable of processing water-based drilling cuttings continuously while meeting emission standards and producing marketable end products.
Our Solution: Φ2.2×45m Rotary Kiln System
Henan Hongke Heavy Machinery engineered a complete thermal processing system centered around a Φ2.2×45m rotary kiln—a configuration well-suited for moderate-throughput drilling waste processing.
Key Equipment Specifications
| Parameter | Value |
|---|---|
| Kiln diameter | 2.2 meters |
| Kiln length | 45 meters |
| Processing capacity | Custom-engineered to customer requirements |
| Operating temperature | Up to 1,200°C (adjustable) |
| Kiln inclination | 3.5–4% |
| Rotation speed | Variable frequency drive |
| Drive system | Heavy-duty gear drive with auxiliary motor |
| Sealing system | Labyrinth seals with air purge at both ends |
Complete System Configuration
1. Feed System
The system includes a screw or belt feeder with variable-speed control to handle semi-dry cuttings and ensure consistent material entry.
2. Φ2.2×45m Rotary Kiln
The core calcination unit features a high-quality carbon steel shell with high-alumina refractory lining. The 45-meter length provides sufficient residence time for complete thermal treatment at temperatures up to 1,200°C. At these high temperatures, the hydrocarbons in the drilling fluid are oxidized, and the residue is reduced to a non-polluting form . The rotating design ensures uniform heat distribution across the material.
3. Fuel-Flexible Burner System
The multi-fuel burner can operate on natural gas, pulverized coal, or biomass, adapting to local fuel availability . The burner initiates combustion in the kiln and aids in burning the hydrocarbon content of the waste material .
4. Exhaust Gas Treatment System
The flue gas treatment train includes a multi-stage system—typically cyclone pre-separator followed by bag filter—to ensure emissions meet environmental standards .
5. Automation & Control
PLC-based centralized control monitors temperature profiles, feed rates, kiln rotation speed, and emissions in real time, ensuring consistent processing with minimal operator intervention.
6. Product Handling
The calcined product—a stable, non-hazardous material—can be used as a construction material additive or cement raw material feed . The system can integrate with existing product processing lines.
Applications and End Products
Water-based drilling cuttings processed in this rotary kiln can be transformed into:
| End Product | Application |
|---|---|
| Cement raw material | Replacing limestone in cement production |
| Construction aggregate | Road base and building materials |
| Brick and block production | Manufacturing building products |
Why This Kiln Works for Drilling Waste
Rotary kilns are the preferred technology for drilling waste thermal treatment due to their:
| Feature | Benefit |
|---|---|
| High-temperature capability | Destroys organic contaminants completely |
| Continuous operation | Handles large volumes 24/7 |
| Material flexibility | Processes variable waste composition |
| Self-sustaining combustion | Hydrocarbon content supports burning, saving fuel |
| Resource recovery | Produces valuable inorganic materials |
A 2018 offshore drilling campaign demonstrated that thermal processing technology can reduce overall waste management costs by up to 36% while improving safety and environmental performance . The recovered base oil can be reintroduced to the drilling mud system, representing significant cost savings .
About Henan Hongke Heavy Machinery Co., Ltd.
Henan Hongke Heavy Machinery Co., Ltd. (Henan Hongke Machinery) has been manufacturing industrial processing equipment since 2006 . Our product portfolio includes:
Rotary Kilns – for drilling waste, lime, dolomite, metallurgy, and mineral calcination
Rotary Dryers – for sludge, biomass, and industrial materials
Ball Mills – for ore, slag, cement, and chemical grinding
Crushers – for primary and secondary size reduction
We provide custom engineering, full manufacturing, installation guidance, and after-sales support for customers worldwide. Our manufacturing facility covers over 50,000 square meters with advanced production equipment and testing facilities.
Summary
The Φ2.2×45m water-based drilling cuttings rotary kiln project in Sichuan demonstrates Henan Hongke Machinery's ability to deliver specialized thermal treatment solutions for the oil and gas waste management industry. By integrating high-temperature processing, advanced emission control, and automation, the system will transform challenging drilling waste into valuable resources while meeting environmental standards.
For drilling waste thermal treatment, mineral processing, or other industrial calcination applications, contact Henan Hongke Heavy Machinery Co., Ltd.
